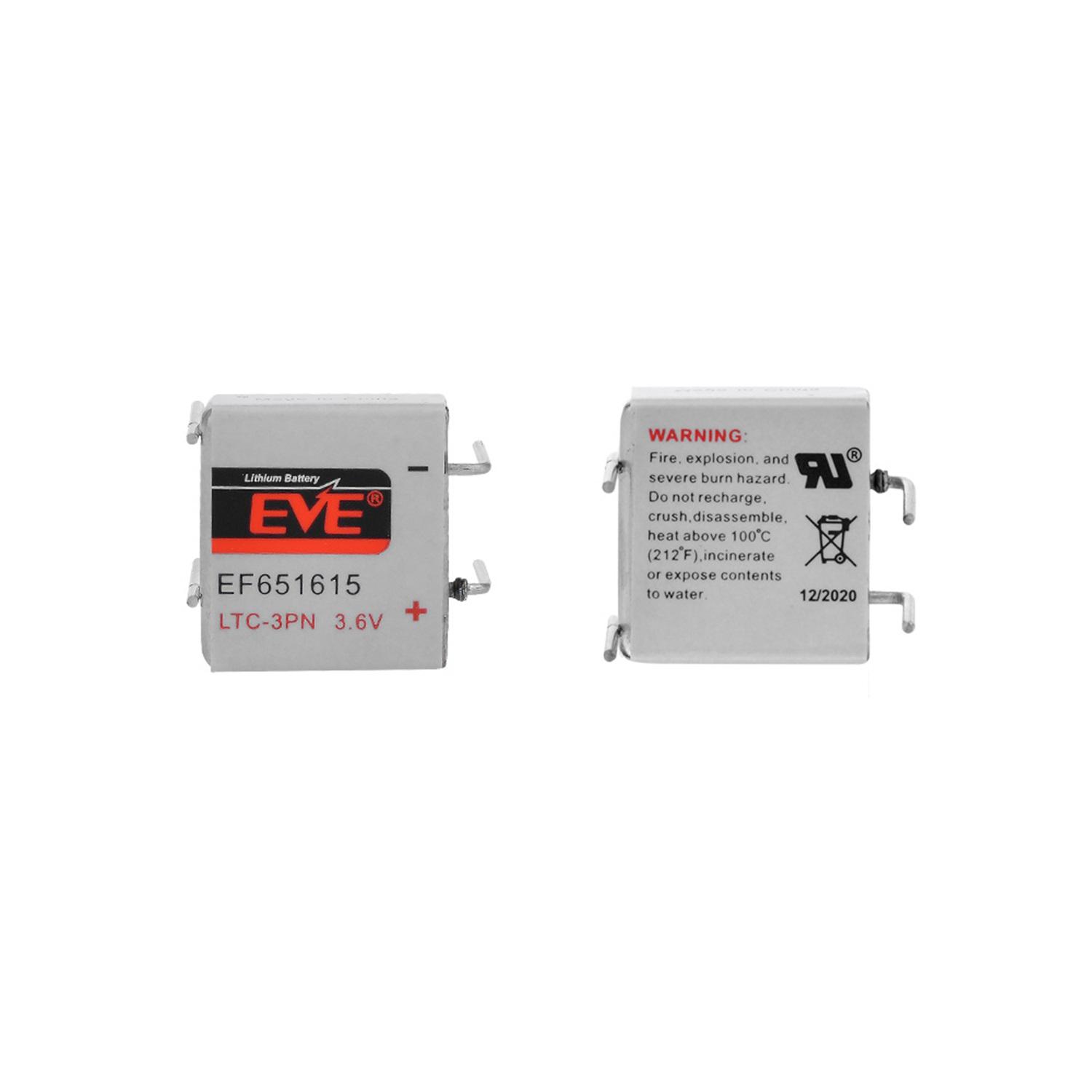

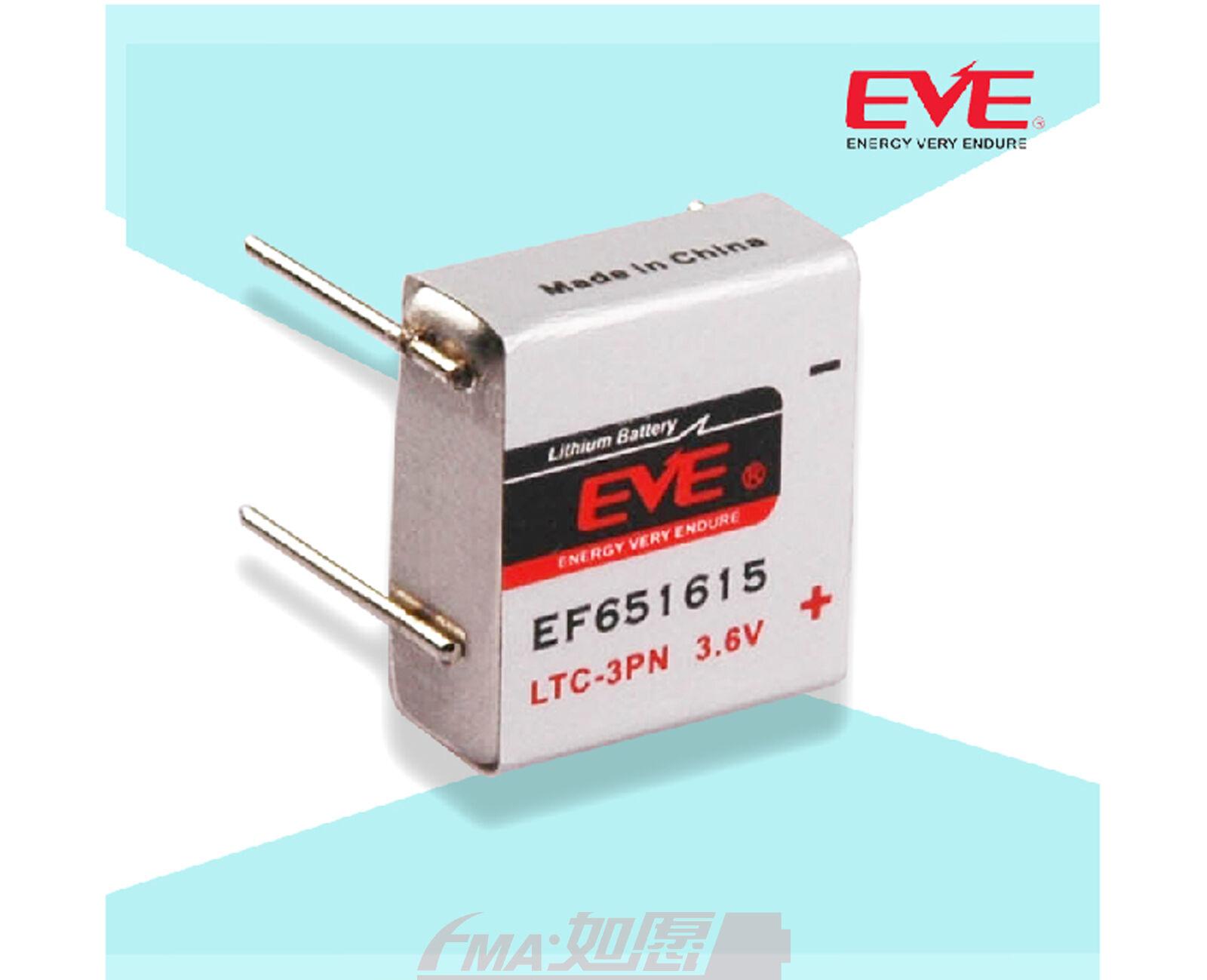

The EF651615 is a 3.6V/400mAh Non-rechargeable Battery features a lithium thionyl chloride technology and PCB pins terminals. High and stable operating voltage. High minimum voltage during pulsing. Low self discharge rate (less than 1% after 1 year of storage at 25°C). Nominal capacity at 0.5mA, 25°C, 2V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off voltage.
- Stainless steel container
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Non-restricted for transport
- 20mA Maximum pulse current capability
- -55 to 85°C Operating temperature range
- LTC-3PN
Applications
Metering, Security, Computers & Computer Peripherals, Sensing & Instrumentation, Automotive, Consumer Electronics
Warnings
Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate or expose contents to water.
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| Тип аксесоар | Батерия |
| Бранд батерия | EVE |
| Технология батерия | Lithium Thionyl Chloride |
| Химически състав | Li/SOCl2 |
| Волтаж | 3.6 V |
